VARIANT
The multi-talented hinge system
As a hinge system for heavy-duty and residential doors, VARIANT is a true all-rounder that offers optimal solutions for all kinds of architectural situations. Thanks to high-quality technology embedded in visually appealing designs, VARIANT can withstand heavy loads while supporting different knuckle diameters and lengths and offering a wide range of finishes. The knuckle hinge also offers a series of special solutions for particular requirements.
VARIANT - Models

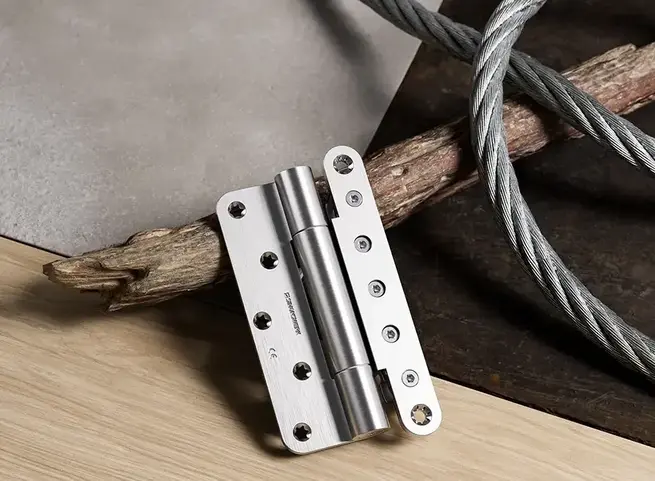

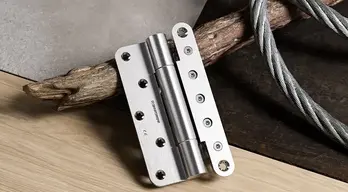

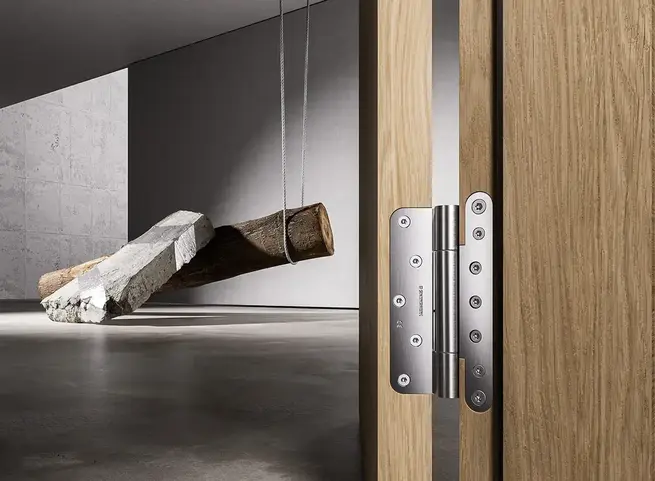

The universal hinge system for heavy-duty doors
- for rebated and unrebated heavy-duty doors
- for timber, steel and aluminium frames
- for 3D-adjustable VARIANT VX receivers
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearing

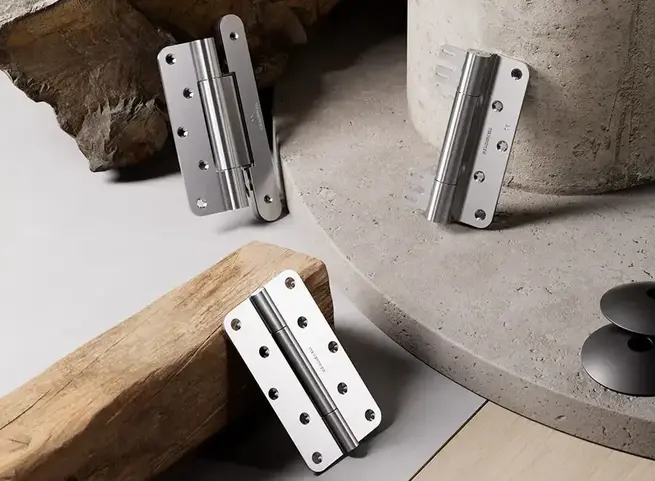

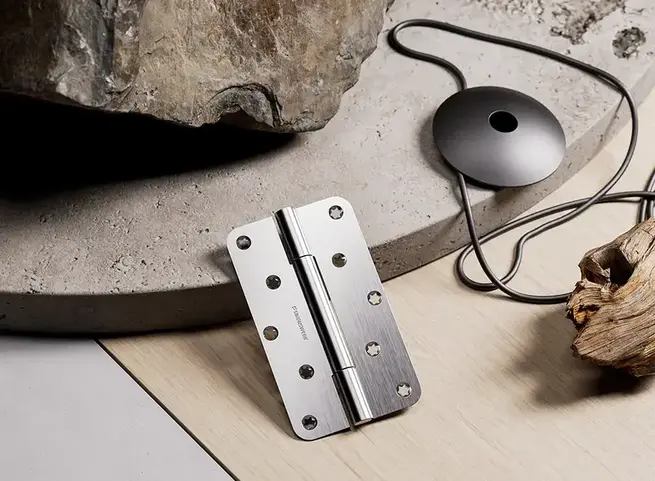

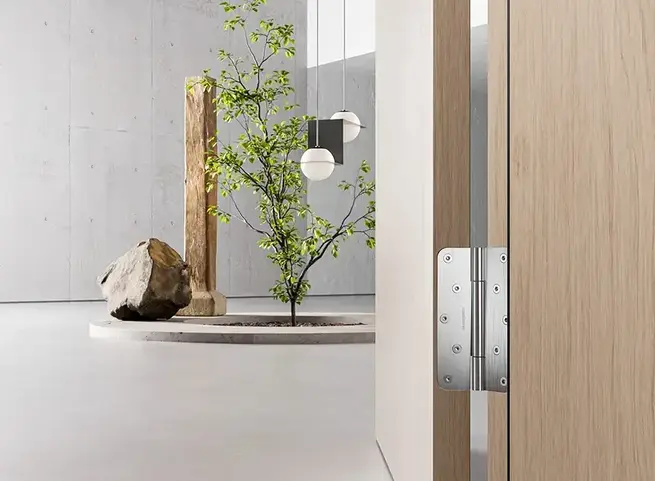

The tried-and-tested hinge system for heavy-duty doors
- for heavy rebated, flush-rebated and unrebated heavy-duty door
- for blind, block, casing and steel frames
- load capacities up to 200 kg
- featuring adjustable receiver in the door leaf
- optional continuous acoustic seal
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearing
- for VARIANT VN receivers for timber frames
The hinge system for glass doors
- for blind, casing and block frames
- for VARIANT V receiver elements and VARIANT VX 3D adjustable receiver elements
- for load capacities up to 80 kg
- for glass doors with vertical standard hole patterns
- for glass thicknesses of 8 mm and 10 mm
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearing
- for use in rebated and unrebated timber, steel and aluminium frames

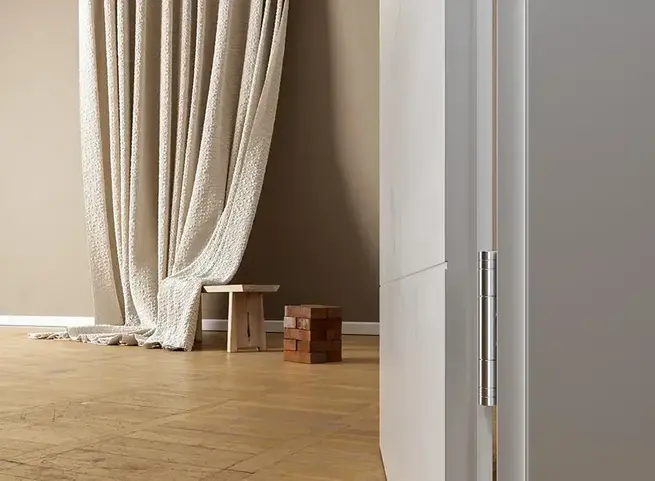

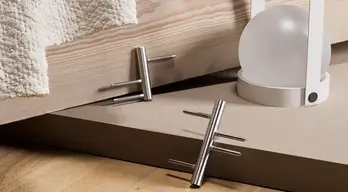

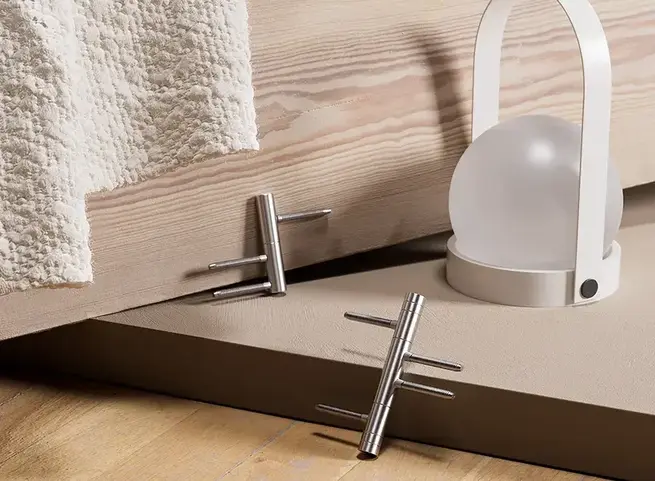

The variable hinge system for residential doors
- different combinations of door leaf and frame part possible
- for rebated, flush-rebated and unrebated doors
- 2- and 3-part hinges for timber, steel and aluminium frames
- for load capacities up to 80 kg
Special Solutions
Humboldt Forum, Berlin
Cultural connections
The location of the Humboldt Forum in Berlin is steeped in history. Recently put together by Italian architect Franco Stella, the crucial aspect was the fusion of old and new elements. The museum’s access areas and entrances experienced particularly heavy loads, which SIMONSWERK is able to effectively support using hinges from the VARIANT VX series, among other solutions.
