COLLIO
The screw-on hinge system for glass doors
The COLLIO screw-on hinge was designed for doors with frames and dividing walls and is the solution for double-action and rebated doors with dampers. Its well thought-out functionality and simple appearance make the hinge a reliable and elegant detail in interior rooms.
COLLIO - Models

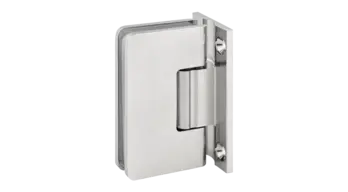

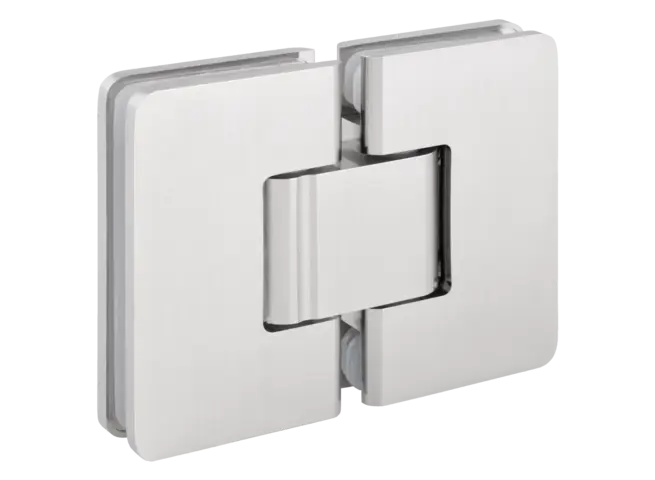

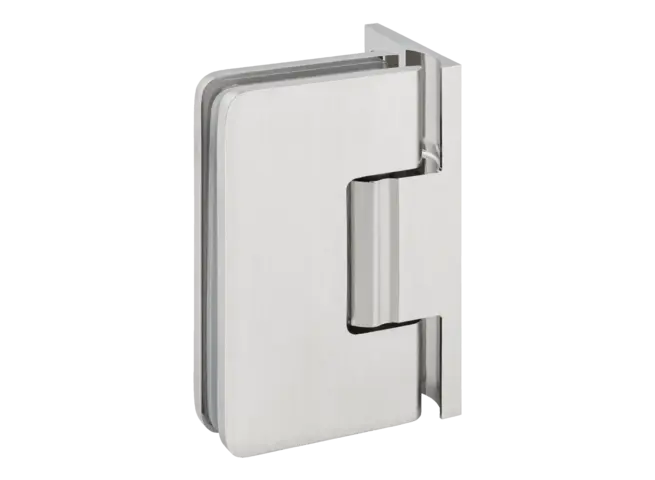

The COLLIO Final latch hinge is designed for use on double-action and rebated doors. Closing starts at 40° – with central or offset all-glass assembly or central glass-glass assembly. The shape of the fastening leaf ensures a reliable seal in the hinge area. To open, just pull.
- glass thickness 6 mm, 8 mm, 10 mm
- load capacity up to 50 kg
- max. door width up to 900 mm

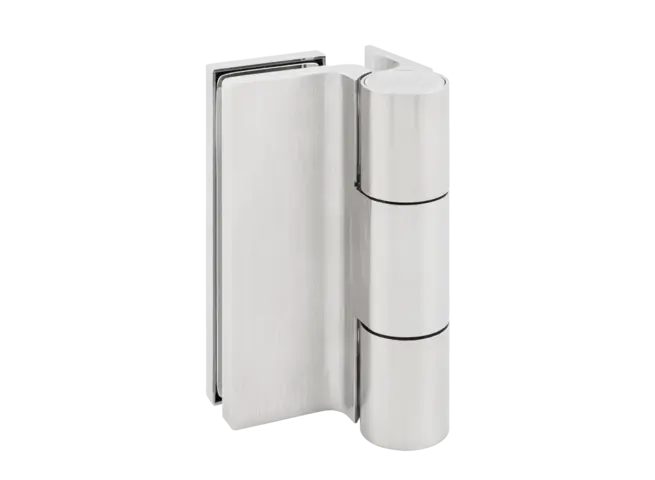

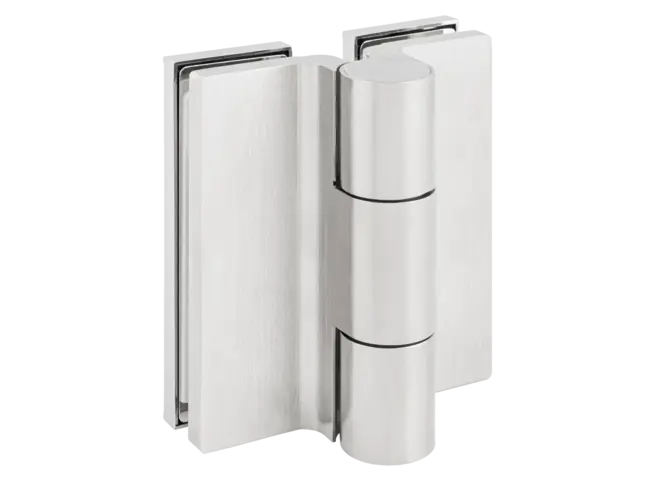

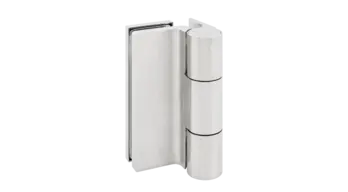

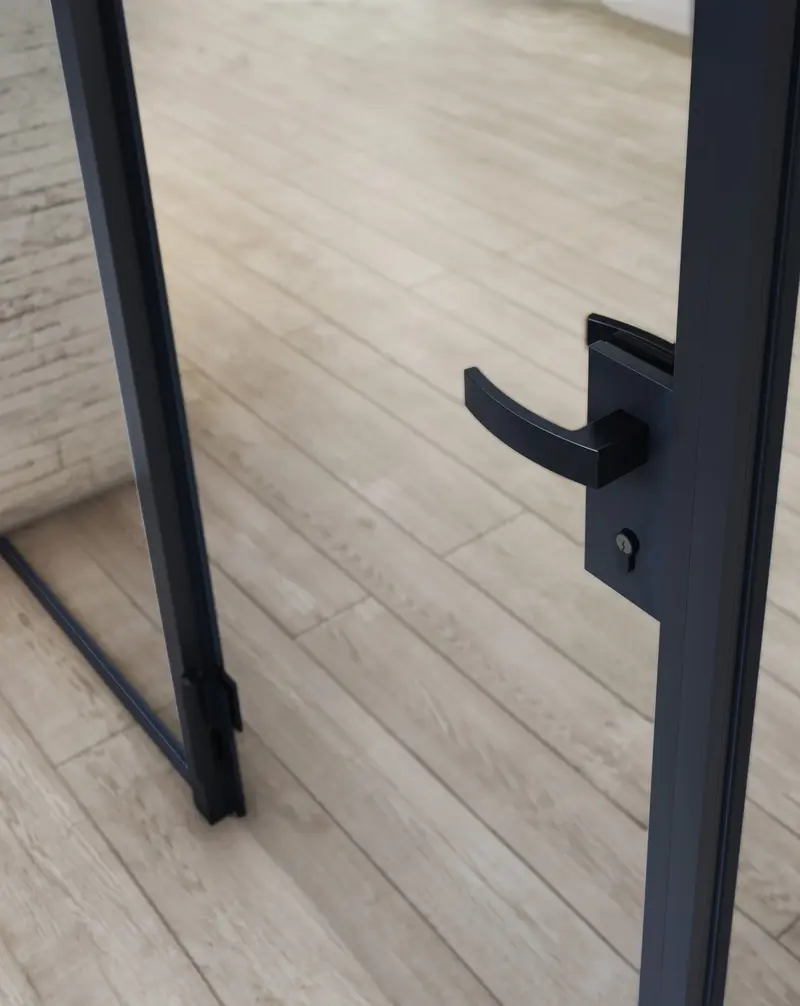

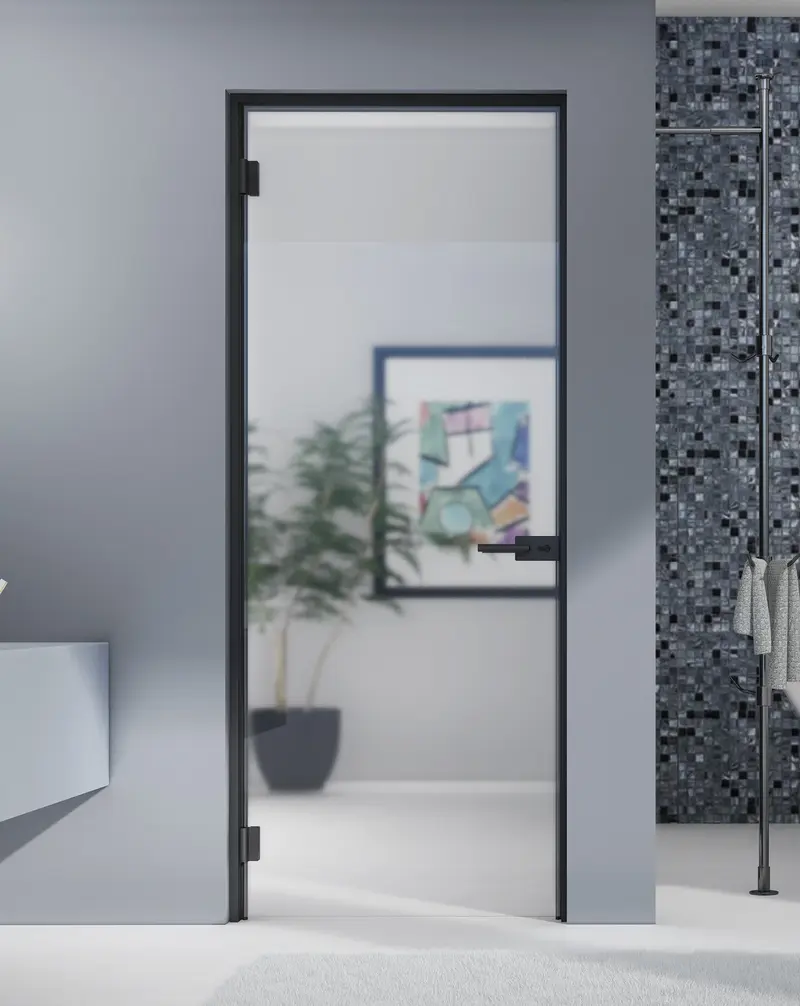

The aluminium COLLIO Free hinge is available as a type for narrow profiles and a rounded type for profiles from 30 mm to 42 mm. The latter was designed for glass doors in offices, shops and apartments; thanks to its linear and square shapes, the version for narrow profiles is suitable for various types of interior doors.
- glass thickness 8 mm, 10 mm, 12 mm
- load capacity up to 80 kg
- max. door width 900 mm
