Door hinges for heavy-duty doors
SIMONSWERK heavy duty hinges are visually pleasing and functionally impressive, providing the perfect finishing touch to doors in high-value construction works. In commercial and public buildings, the tailored, modern hinge range is used on heavily frequented doorways, prestigious entrances and oversized exits.
Heavy-duty timber doors

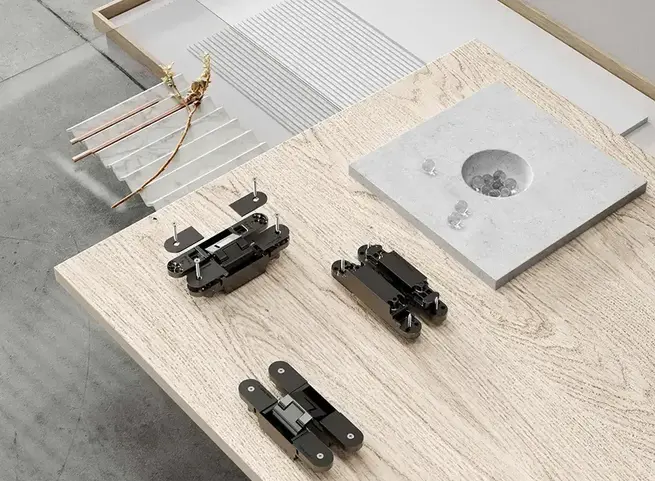

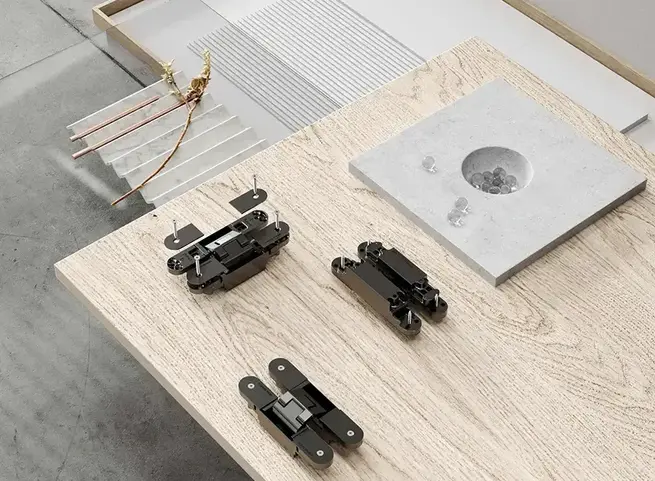

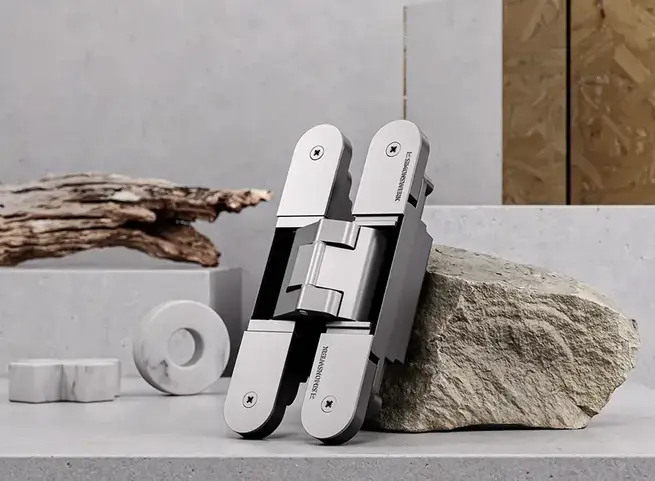

The completely concealed hinge system for rebated and unrebated timber doors are excellently suited to non-residential applications.
- for load capacities up to 300 kg
- for blind, block, steel and casing frames
- optionally for recessed frame facings
- includes integrated intumescent kit
- comes with maintenance-free slide bearings
- optional permanent energy transfer feature
- convenient 3D adjustment

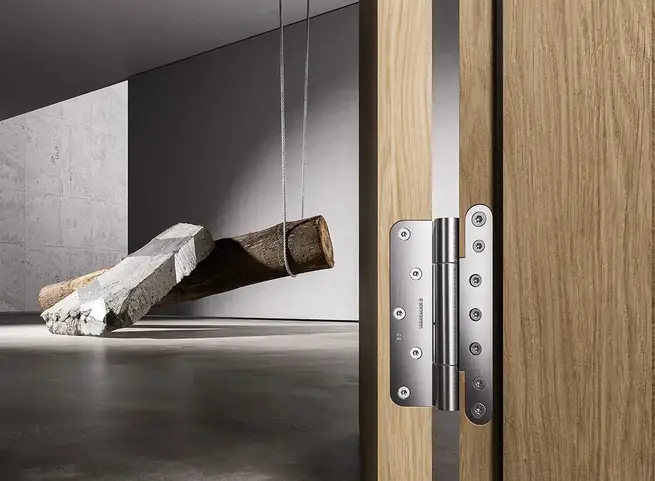

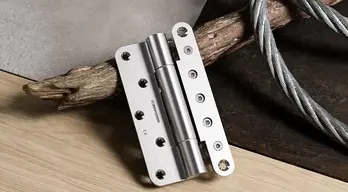

The universal hinge system for unrebated, rebated and flush-rebated heavy-duty timber doors
- for load capacities up to 400 kg
- for door leaf thicknesses up to 70 mm
- optional acoustic seal
- for 3D-adjustable VARIANT VX receivers
- optional elegant knuckle reduced in diameter
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearing

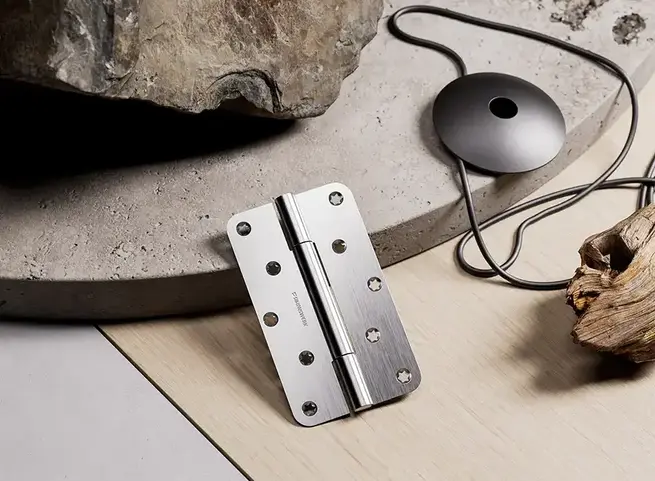

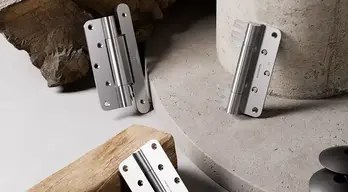

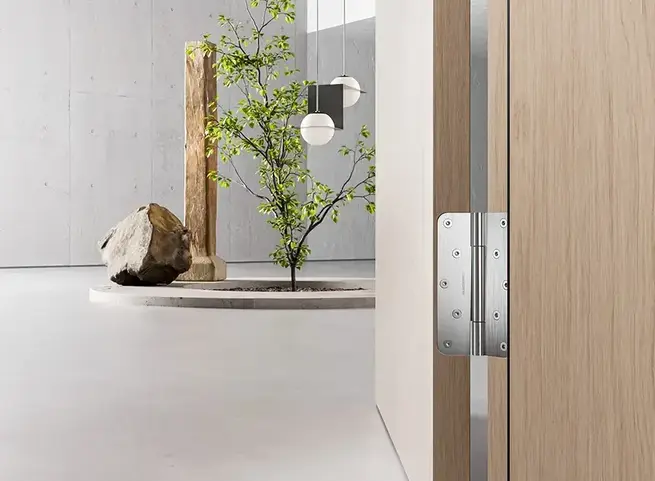

The tried-and-test hinge system for heavy-duty rebated, flush-rebated and unrebated doors.
- load capacities up to 200 kg
- featuring adjustable receiver in the door leaf
- for VARIANT VN receivers for timber frames
- optional continuous acoustic seal
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearing
Heavy-duty steel doors
The completely concealed hinge system for rebated and unrebated timber doors are excellently suited to non-residential applications.
- for load capacities up to 300 kg
- for blind, block, steel and casing frames
- optionally for recessed frame facings
- includes integrated intumescent kit
- comes with maintenance-free slide bearings
- optional permanent energy transfer feature
- convenient 3D adjustment

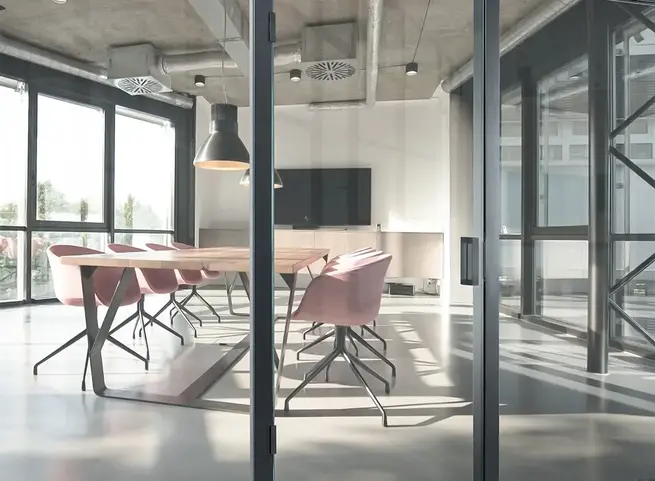

Heavy-duty glass doors

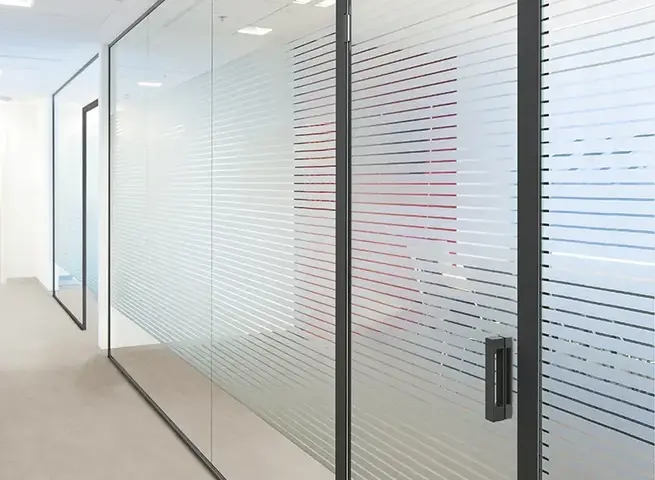

Perfect for flush use of glass doors in non-residential applications with tempered safety glass with glass thicknesses from 8 mm to 10 mm on timber, steel and aluminium frames.
- easy and fast assembly without glass machining
- for load capacities up to 100 kg
- without drilling the door leaf
- infinitely variable sideways and height adjustment
- maintenance-free slide bearings
- continuous operation tested at ift, Rosenheim
The hinge system is perfectly suited to glass doors on blind, casing and blind frames in non-residential applications.
- for VARIANT V receiver elements and VARIANT VX 3D adjustable receiver elements
- for load capacities up to 80 kg
- for glass doors with vertical standard hole patterns
- for glass thicknesses of 8 mm and 10 mm
- internal torsion-proof pin
- concealed, maintenance free axial-radial slide bearing
- for use in rebated and unrebated timber, steel and aluminium frames
The self-closing screw-on hinge for double-action and rebated glass doors comes into its own when used in office and administrative buildings, showrooms, museums and upmarket culinary establishments.
- setting the door closing speed
- 0°-point regulation for double-action doors
- setting for 0°, +90°, -90°
The self-closing hinge is suitable for all door opening angles up to 180° and is also available as a version with automatic closing from 160° to 0° – ideal for office and administrative buildings and for separating specific areas in medical practices, for example.
- glass thickness 8 mm to 21.52 mm
- load capacity up to 120 kg
- setting the end motion
- shock absorbers with an integrated overpressure relief system prevent breakage when accidentally tugged
The pivot hinge for heavy glass double-action doors has an elegant, minimalist design. The portfolio also comprises completely concealed hinges for flush room structures, such as in shopping centres, offices and commercial buildings.
- speed regulation system
- load capacity up to 150 kg, max. door width 1200 mm
- glass thicknesses from 8 mm to 19.5 mm
- minimalist design
- model variants for inside and outside doors

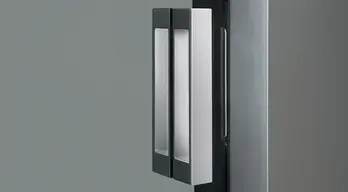

KEEP CLOSED allows glass doors in non-residential buildings to be moved completely silently with minimal ergonomic effort and without the usual ‘push-pull-slide’ motion.
- innovative, zero-current and magnetic
- intelligent alternative to conventional latching systems
- holds in closed position without direct contact with the closing magnet
- individually adjustable retention force
- perfectly coordinated components
- diverse range of handles
Special requirements for heavy-duty doors
Completely concealed hinge system with permanent energy transfer for unrebated and flush-rebated residential doors.
- includes individually selectable connection adapter
- for timber, steel and aluminium frames
- convenient 3D adjustment (side +/- 3.0 mm, height +/- 3.0 mm, compression +/- 1.5 mm)
- maintenance-free slide bearings

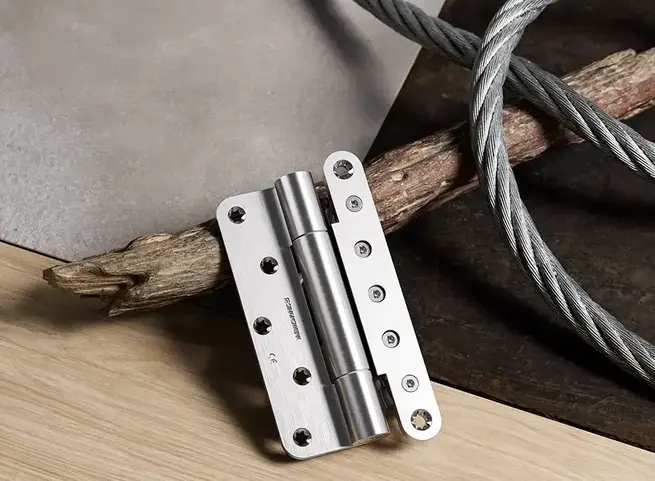

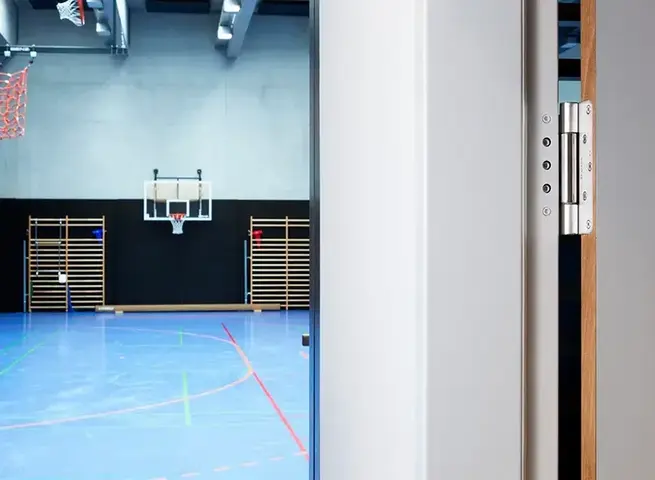

With a welded hinge knuckle, the hinge system for heavy-duty commercial doors is suitable for timber, steel and aluminium frames. So even the most demanding requirements for fire and smoke protection and soundproofing can be met.
- for rebated and unrebated heavy-duty doors
- load capacity 400 kg
- for blind, block and casing frames
- optional receiving groove for continuous acoustic seal
- for 3D-adjustable VARIANT VX receivers
- internal torsion-proof pin
- maintenance axial-radial slide bearings
With the special VARIANT Care hinge system, planned frame rebate dimensions are turned into real clearance dimensions, as the door can be completely opened at a 90° angle. The hinge systems from the product range are optimised for door leaf thicknesses from 40 to 70 mm.
- for unrebated heavy-duty doors
- for timber, steel and aluminium frames
- for load capacities up to 100.0 kg
- for 3D-adjustable VARIANT VX receivers
- for door thicknesses of 40 mm, 45 mm, 50 mm, 65 mm and 70 mm
- internal torsion-proof pin
- maintenance axial-radial slide bearings
For unrebated doors with a finger protection function on timber, steel and aluminium frames.
- for load capacities up to 120 kg
- continuous finger protection on the secondary closing edge
- for use in new builds and renovations
- maintenance-free running on steel balls
- consisting of frame part VN 7100 finger protection and door part VN 0099 finger protection incl. receivers VN 7507 3D
Providing adjustable hinge solutions, VARIANT Compact is highly suited to elegant frame views. By offsetting the hinge receiver in the door leaf, pre-existing steel frames etc. can be renovated in a way that saves time and money.
- adjustable receiver in the door leaf
- convenient 3D adjustment
- for slim frame constructions
- for load capacities up to 200 kg
- alternative model variants with reduced, elegant knuckles
- suitable for functional doors with smoke and fire protection

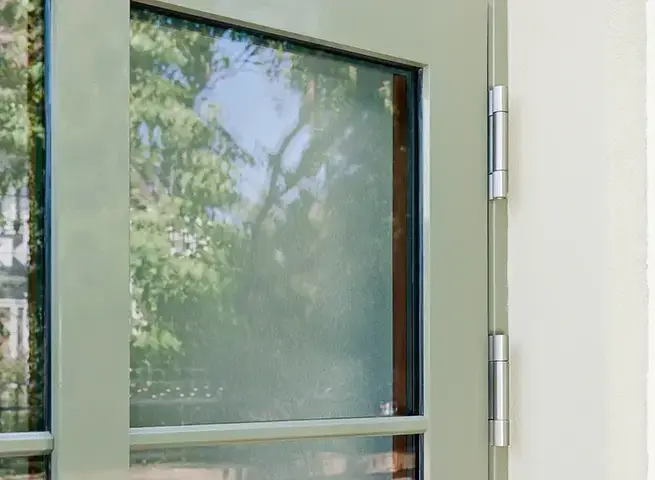

The VARIANT VX 7729/160-4 HA MSTS hinge system was specially developed for entrance doors made from timber and aluminium and is based on the tried-and-tested VARIANT VX knuckle hinge technology.
- compact unit consisting of knuckle hinge, receiver and cover angle
- for loads up to 160 kg
- for 3D-adjustable receivers VX 7531 3D and VX 7535 3D
- comes with security pin and welded hinge knuckle
- concealed axial-radial slide bearing
