Timber doors
Naturally authentic
Timber doors bring a special finish to every interior design concept. They contribute to the atmosphere in the room, bring a natural finish and can be harmoniously combined in many different ways with materials such as concrete, steel and natural stone. Solid timber door leaves, however, require a hinge system that is capable of supporting heavier loads. SIMONSWERK has the perfect solution for every application.
Hinge systems for heavy-duty doors
Model variants for heavy-duty timber doors

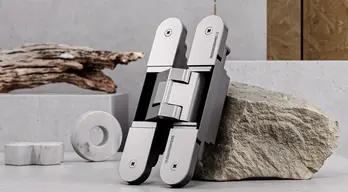

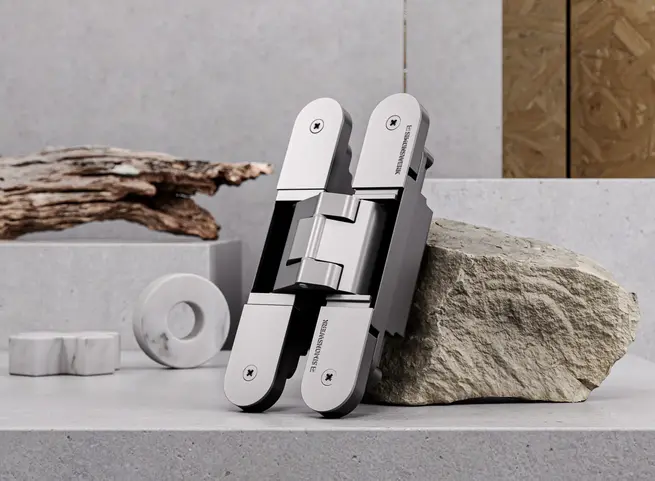

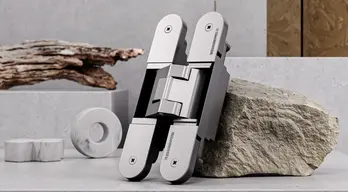

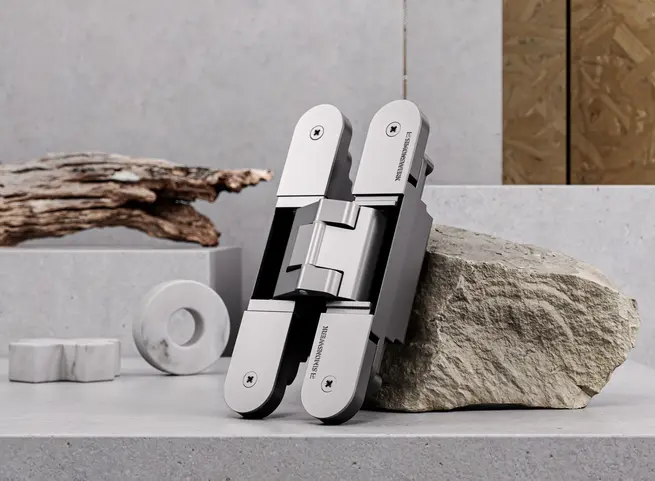

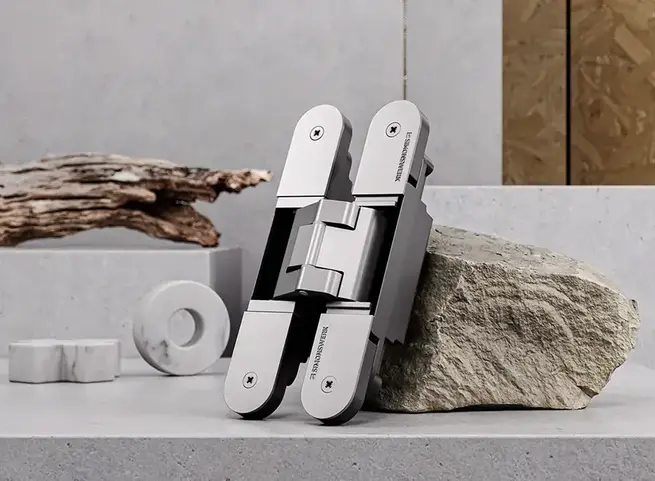

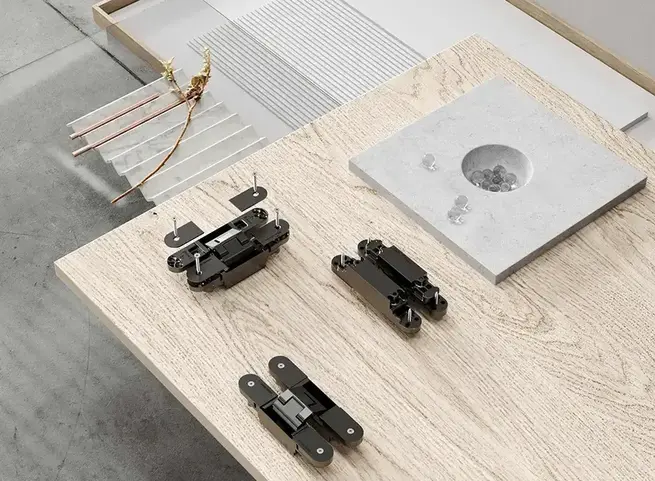

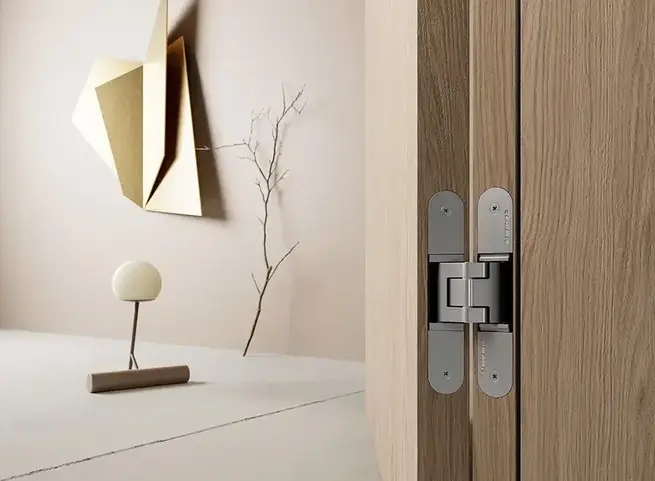

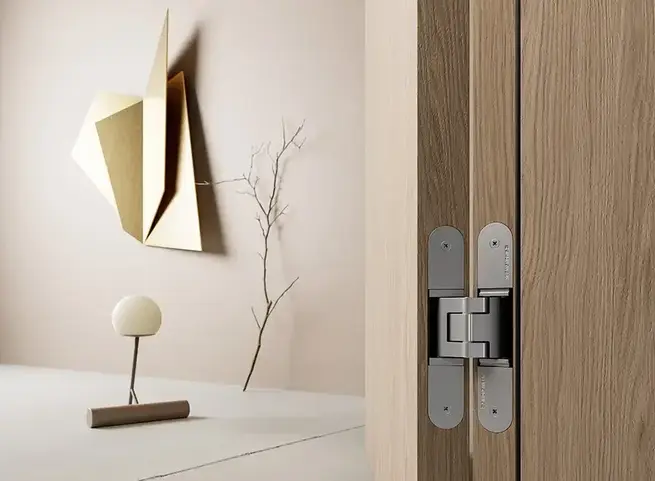

The completely concealed hinge system for rebated and unrebated timber doors are excellently suited to non-residential applications
- for load capacities up to 300 kg
- for blind, block, steel and casing frames
- optional for recessed frames
- includes integrated intumescent kit
- maintenance-free slide bearings
- optional permanent energy transfer feature
- convenient 3D adjustment

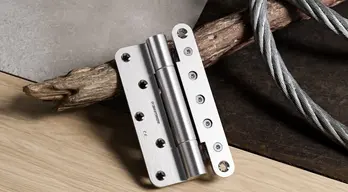

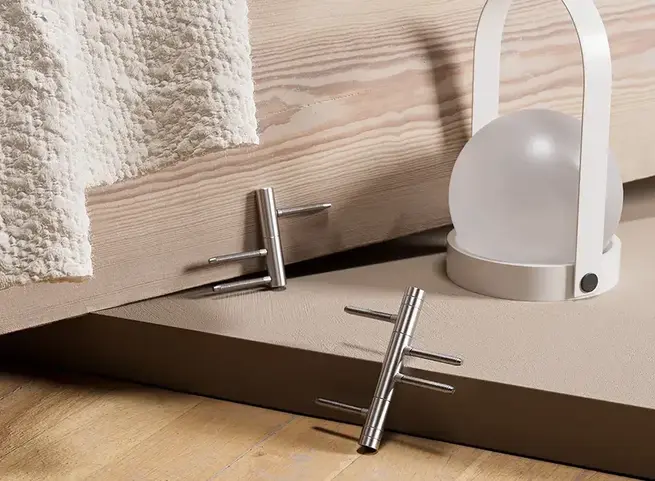

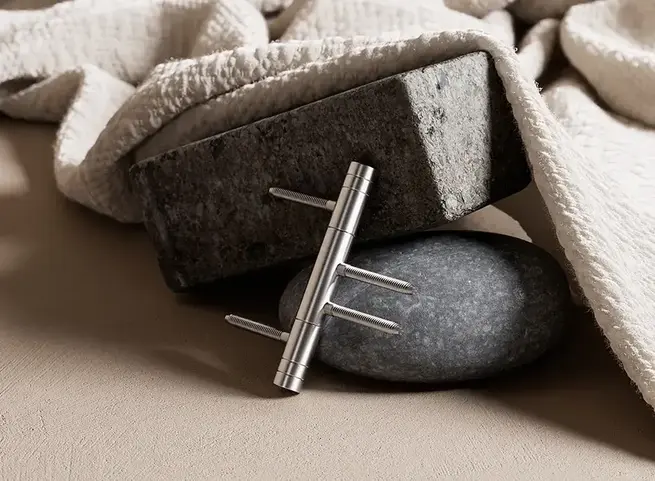

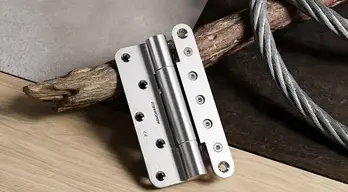

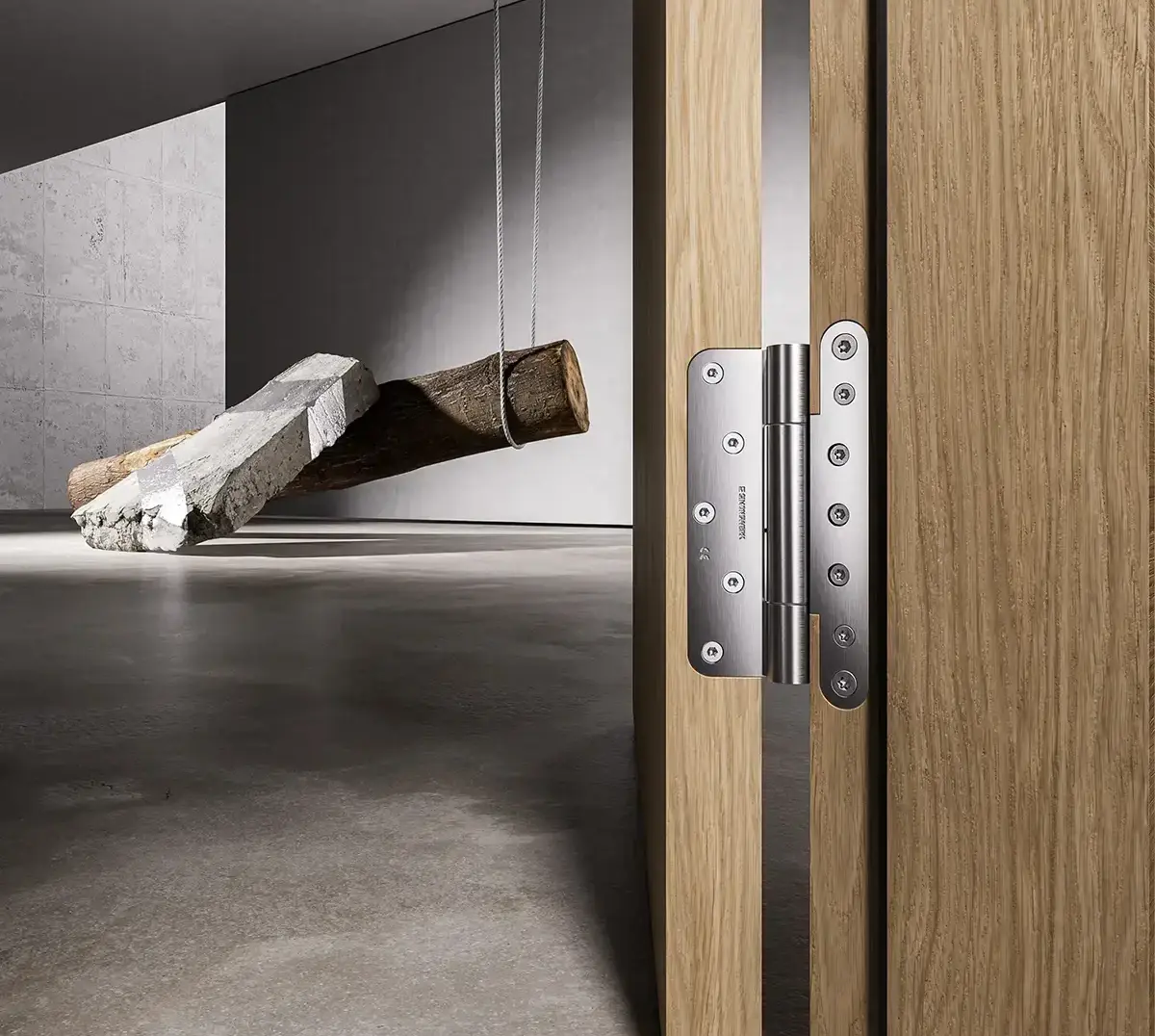

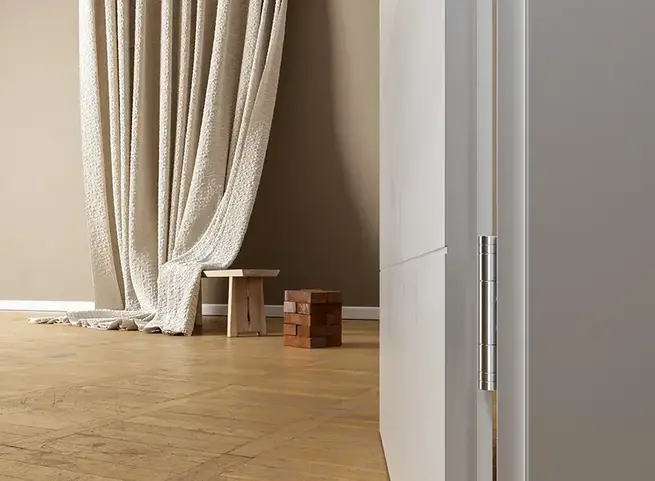

The universal hinge system for unrebated, rebated and flush-rebated heavy-duty timber doors
- for load capacities up to 400 kg
- for door leaf thicknesses up to 70 mm
- optional acoustic seal
- for 3D-adjustable VARIANT VX receivers
- optional elegant knuckle reduced in diameter
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearing

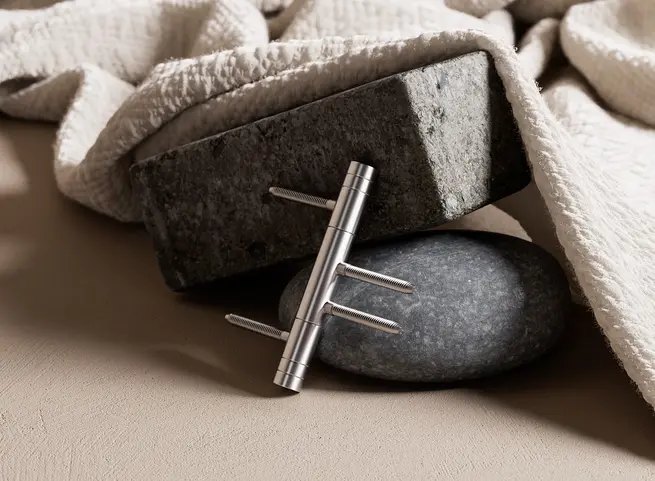

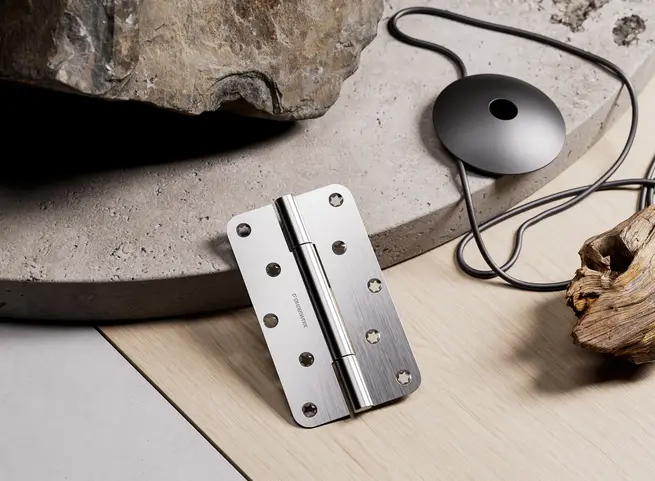

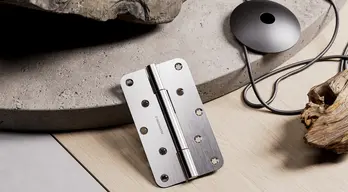

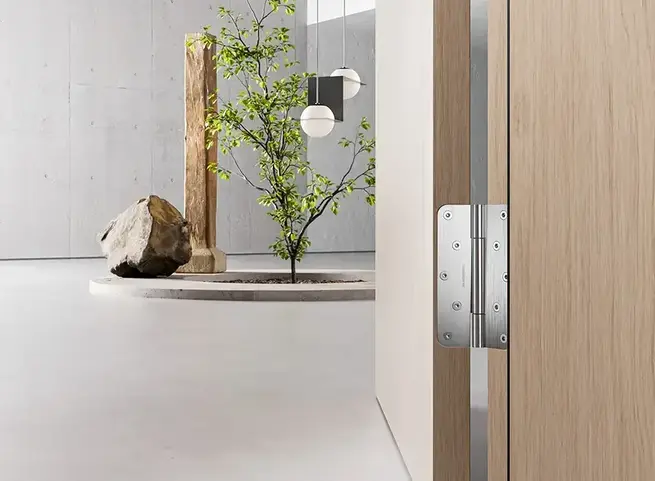

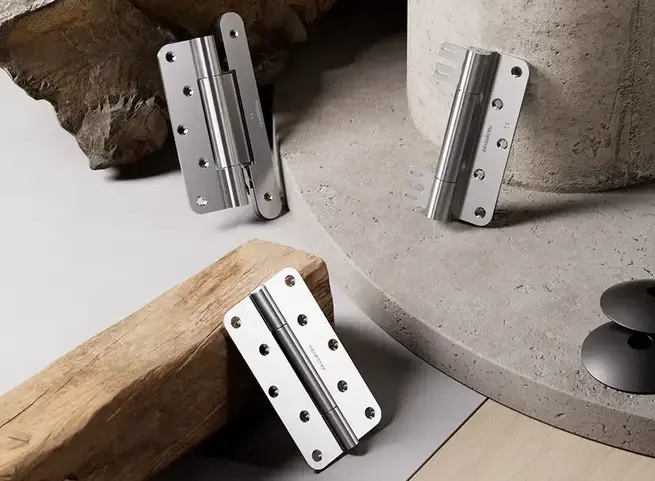

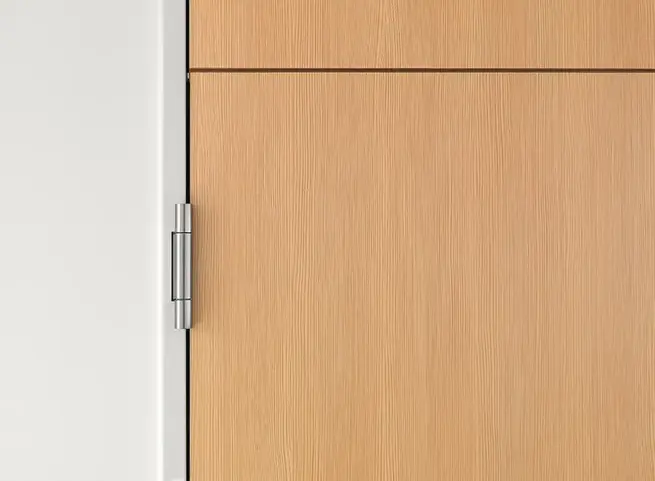

The tried-and-test hinge system for heavy-duty rebated, flush-rebated and unrebated doors
- load capacities up to 200 kg
- featuring adjustable receiver in the door leaf
- for VARIANT VN receivers for timber frames
- optional continuous acoustic seal
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearing

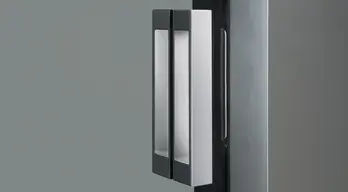

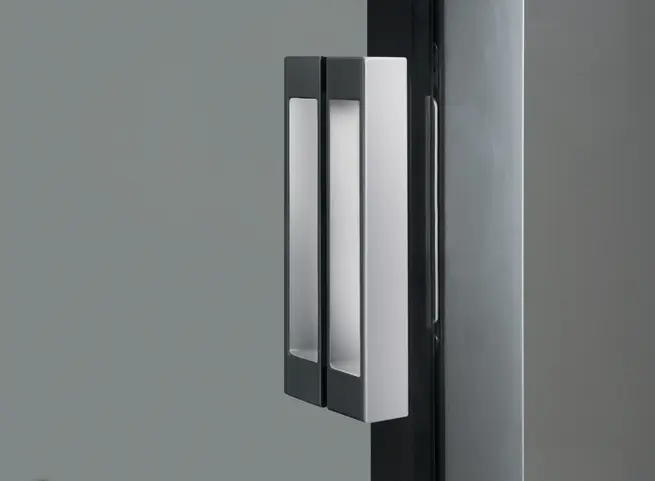

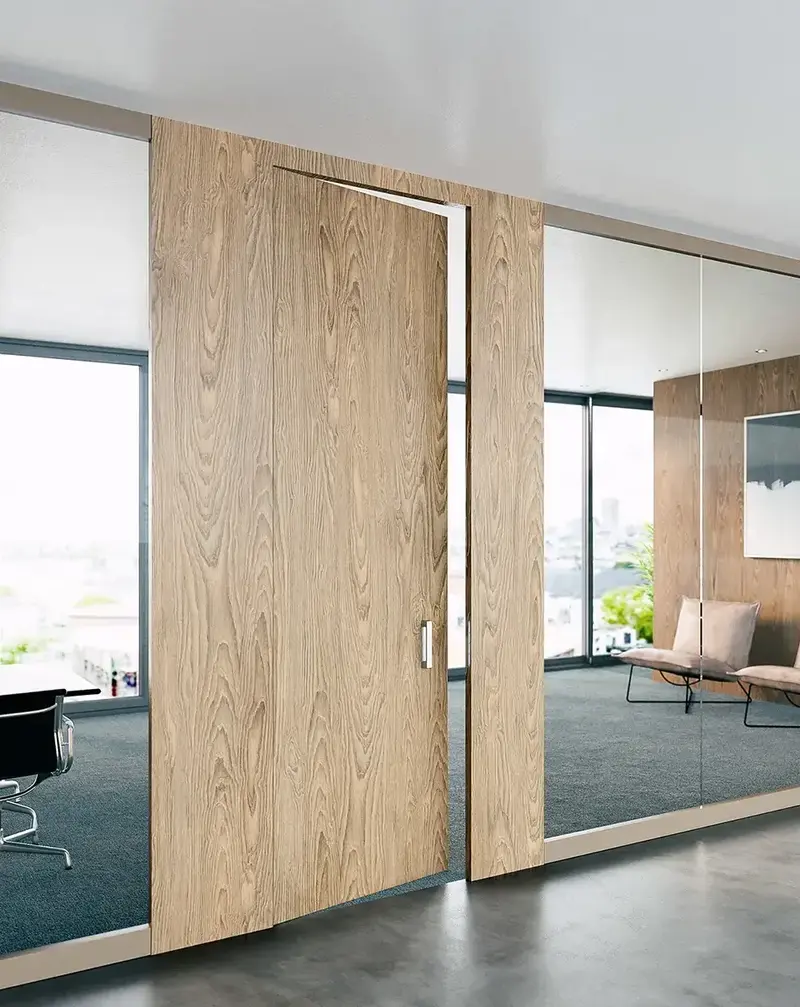

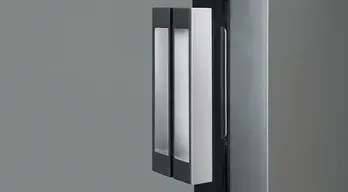

With the magnetic KEEP CLOSED latching system, heavy-duty timber doors can be moved completely silently with minimal ergonomic effort and without the usual ‘push-pull-slide’ motion.
- innovative, zero-current and magnetic
- remains in closed position without direct contact with the closing magnet
- individually adjustable retention force
- perfectly coordinated components
- diverse range of handles

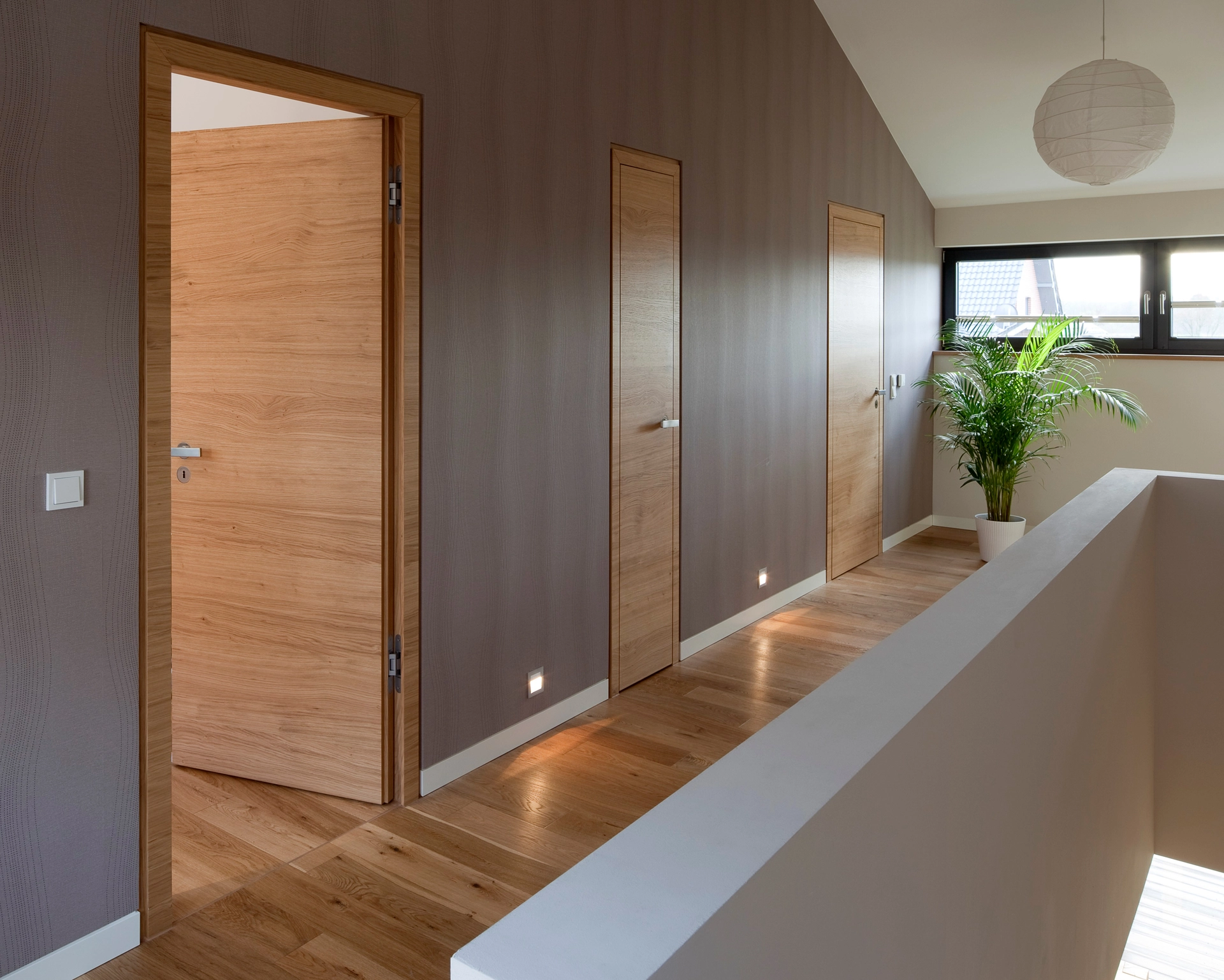

Hinge systems for residential doors
Model variants for timber residential doors

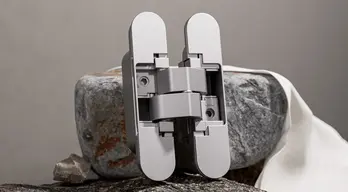

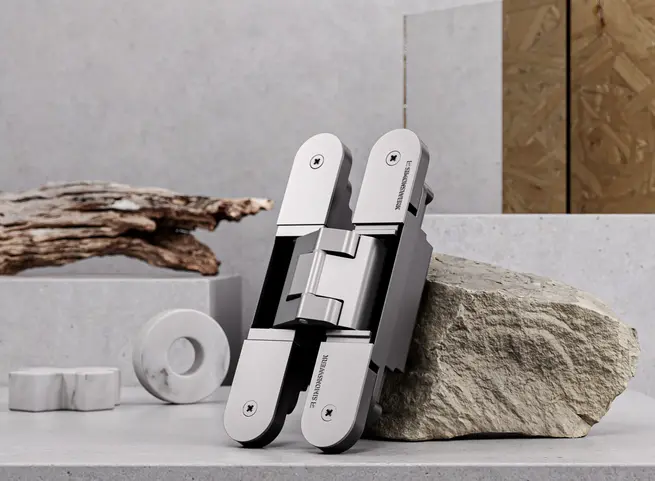

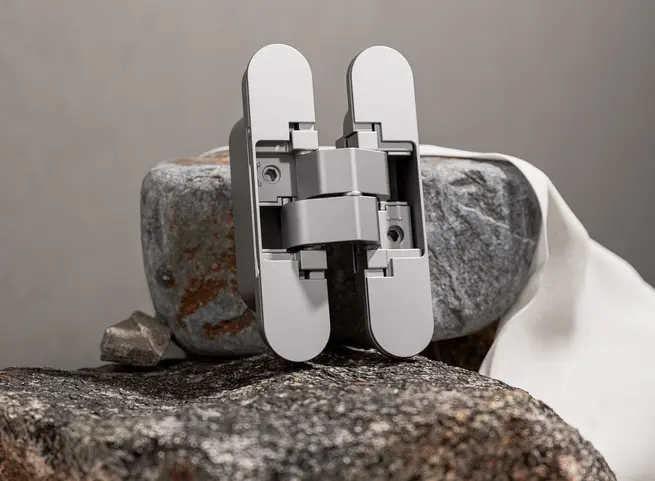

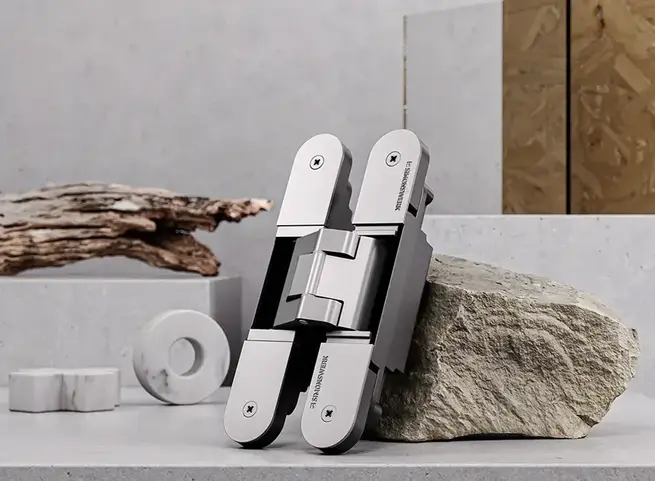

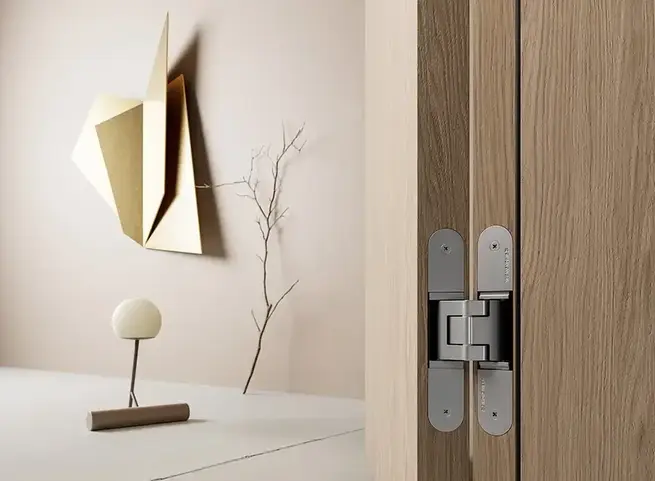

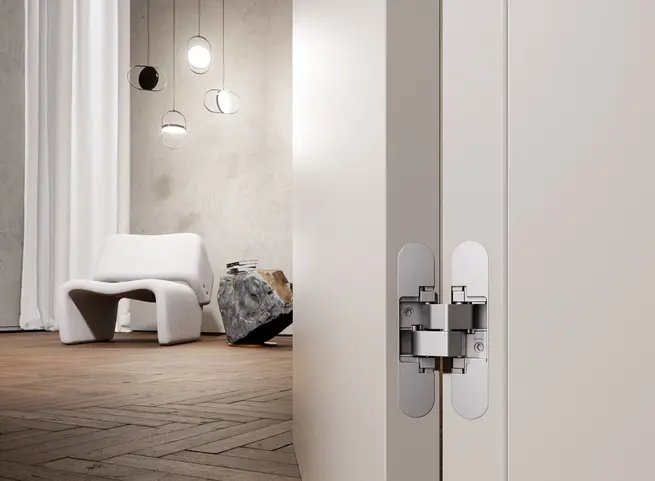

The completely concealed hinge system for rebated, unrebated and flush-rebated timber doors
- for blind, block, steel and casing frames
- optionally for recessed frame facings
- maintenance-free slide bearings
- for aesthetic combinations in timber doors
- includes sideways closed hinge body
- convenient 3D adjustment

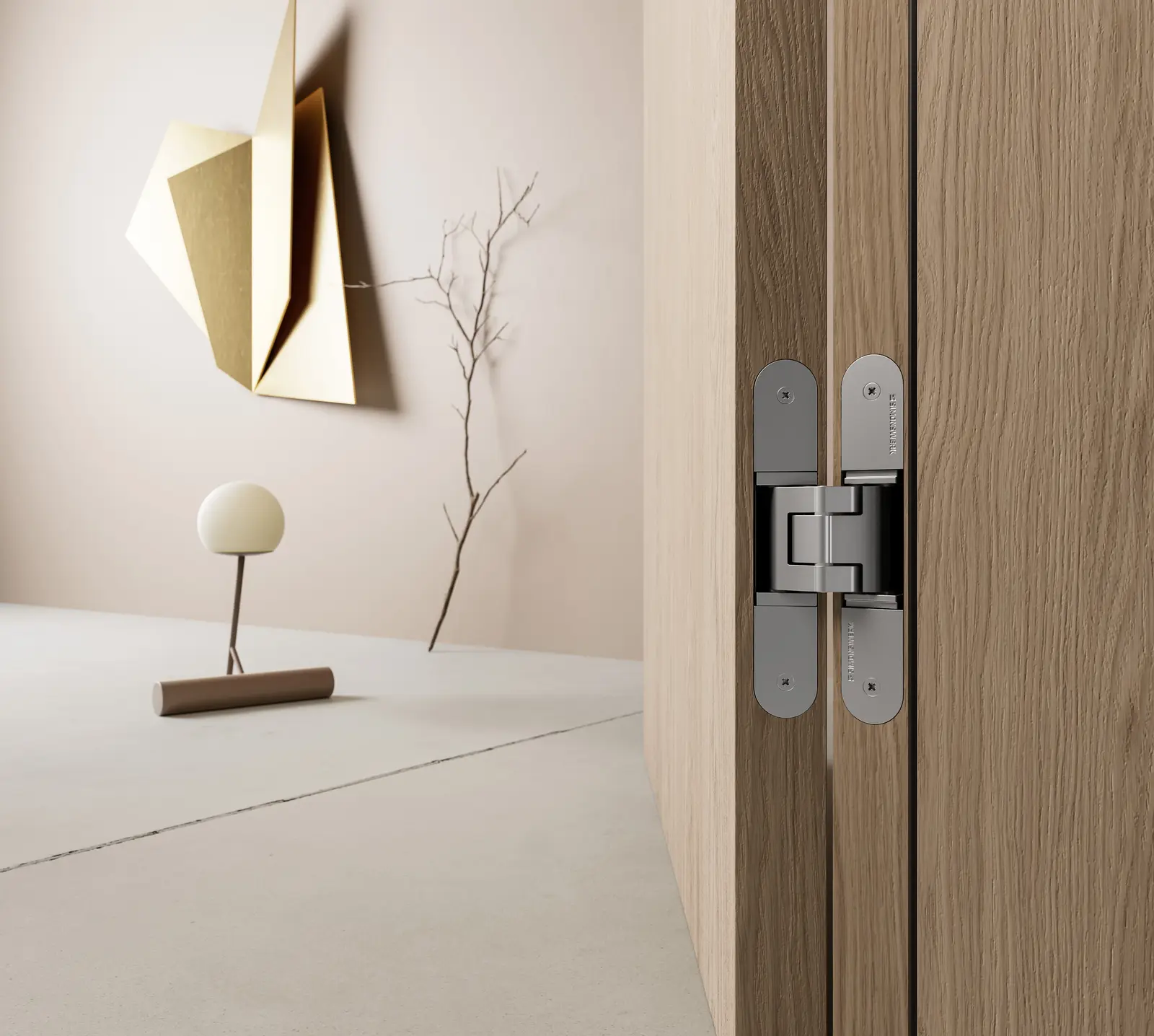

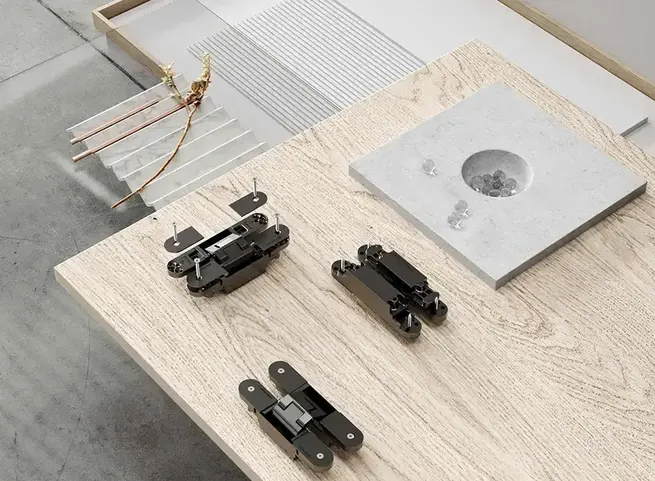

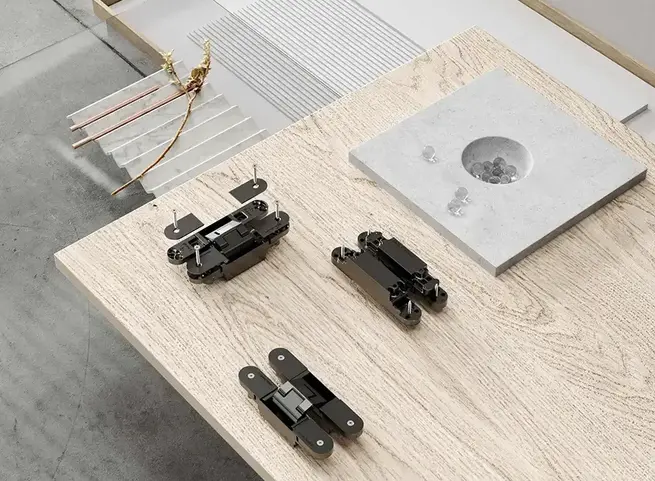

Concealed hinge systems for unrebated timber doors and timber doors with recessed frame facings
- load capacity from 20 up to 60 kg
- for door thicknesses from 35 up to 44 mm
- optionally for aluminium framed doors
- optionally for centred installation
- optionally for recessed frames (12 to 14 mm)
- optionally with reduced hinge frame part
- optionally for doors with claddings up to 4 mm
- optionally with self-closing function (closing power from 20 up to 45 kg and optional dampened closing)

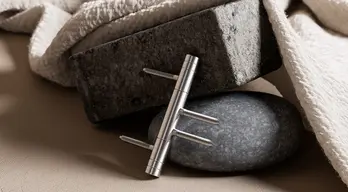

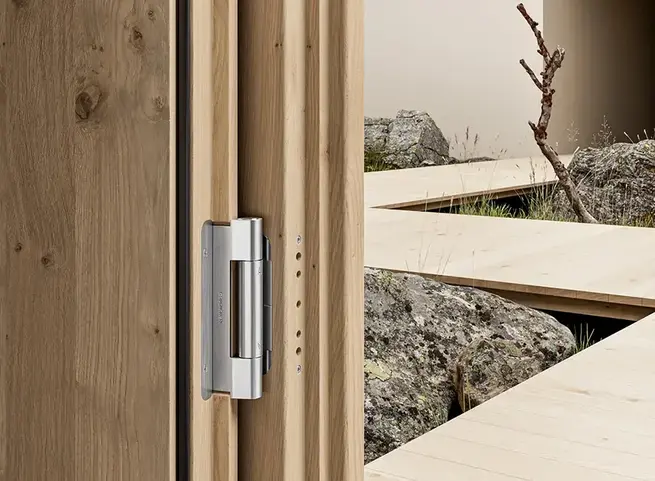

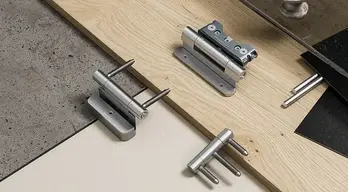

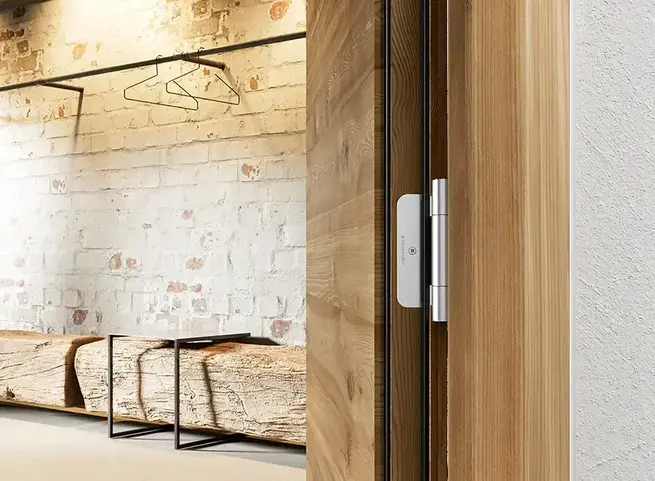

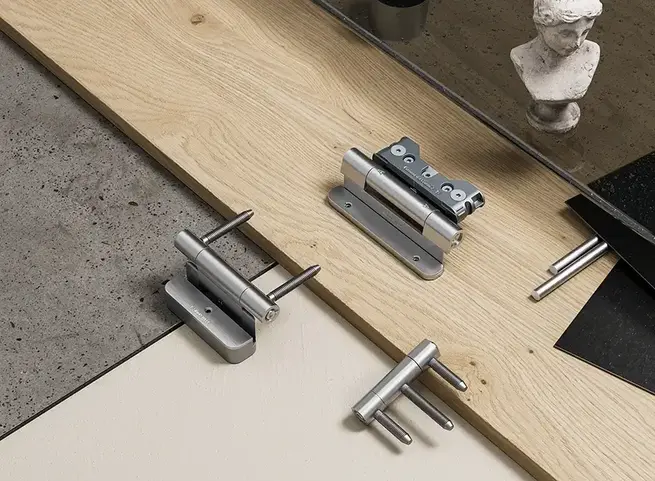

The variable hinge system for individual timber residential doors
- different combinations of door leaf and frame part possible
- for rebated, flush-rebated and unrebated doors
- 2- and 3-part weld-on hinge
- for load capacities up to 80 kg

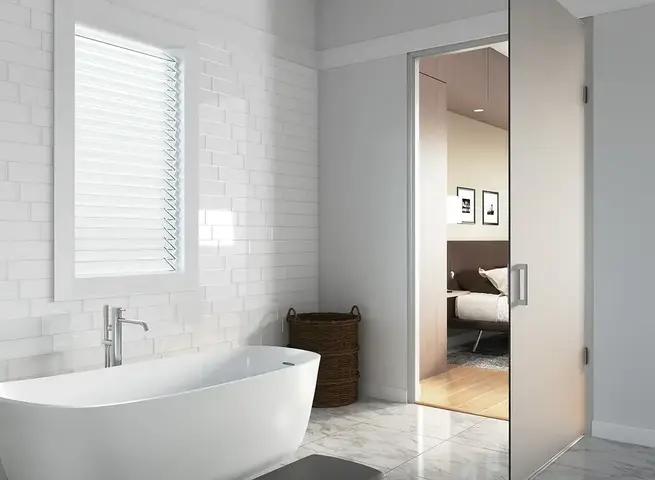

With the magnetic KEEP CLOSED latching system, residential doors can be comfortably moved with minimal ergonomic effort and without the usual ‘push-pull-slide’ motion.
- innovative, zero-current and magnetic
- completely silent
- individually adjustable retention force
- perfectly coordinated components
- diverse range of handles
Hinge systems for entrance doors
Model variants for timber entrance doors

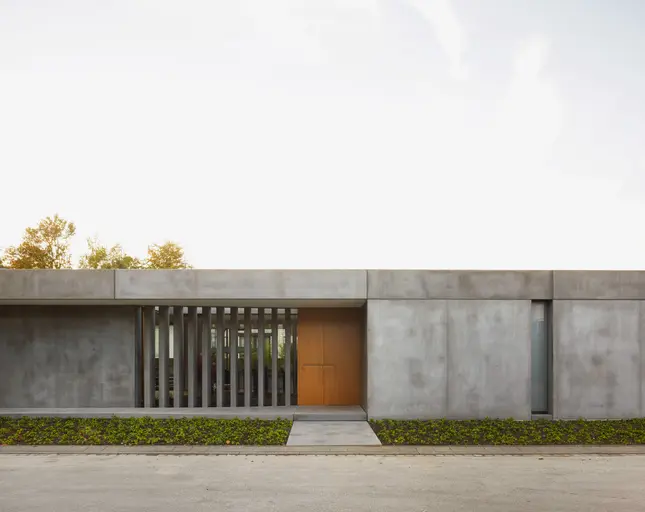

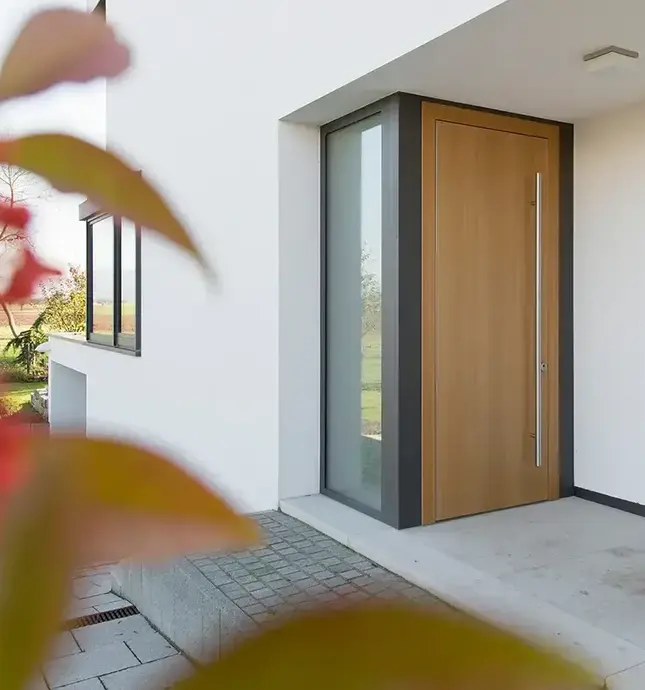

The completely concealed hinge system for rebated and unrebated timber doors – perfect for heavy timber entrance doors.
- for load capacities up to 300 kg
- for blind, block and casing frames
- maintenance-free slide bearings
- optional permanent energy transfer feature
- comfortable 3D adjustment

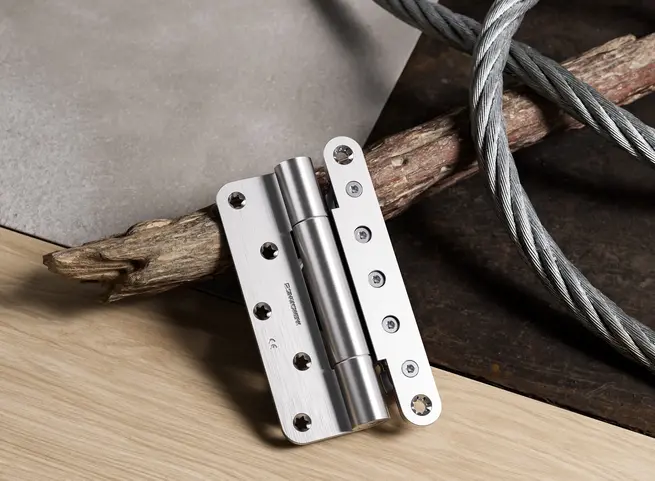

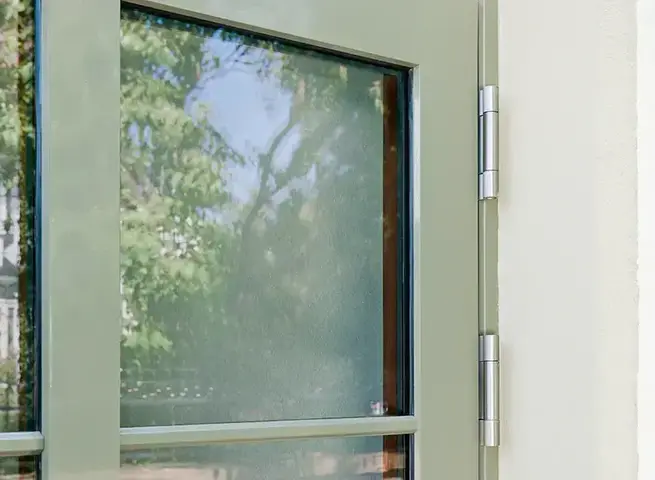

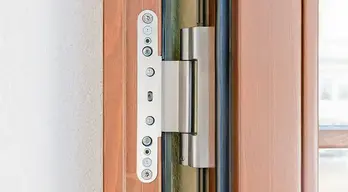

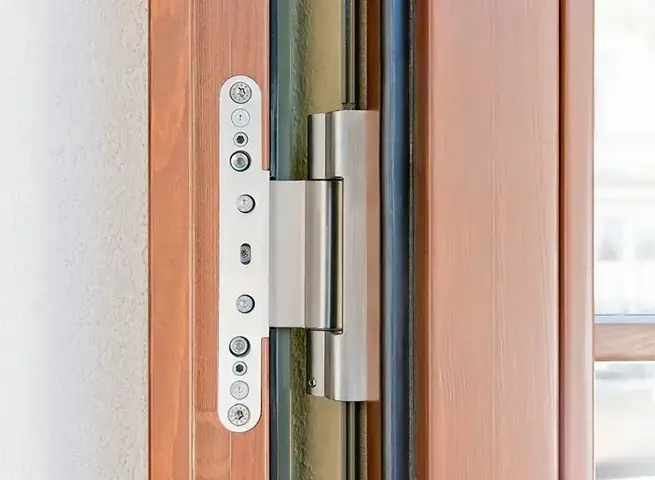

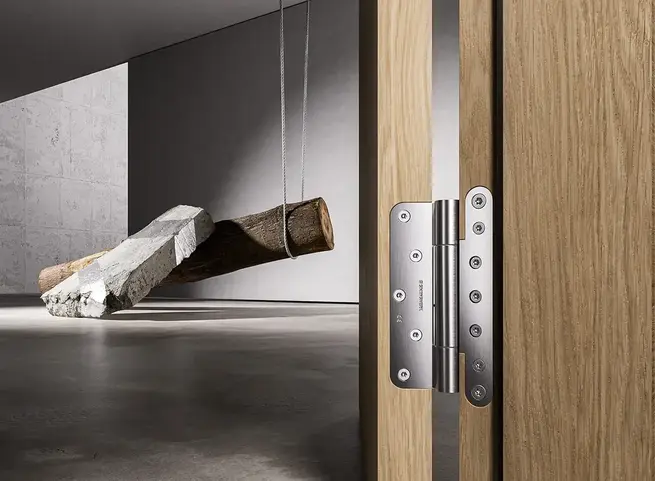

The VARIANT VX 7729/160-4 HA MSTS hinge system was specially developed for entrance doors made from timber and aluminium and is based on the tried-and-tested VARIANT VX knuckle hinge technology
- compact unit consisting of knuckle hinge, receiver and cover angle
- for loads up to 160 kg
- for 3D-adjustable receivers VX 7531 3D and VX 7535 3D
- comes with security pin and welded hinge knuckle
- concealed axial-radial slide bearing

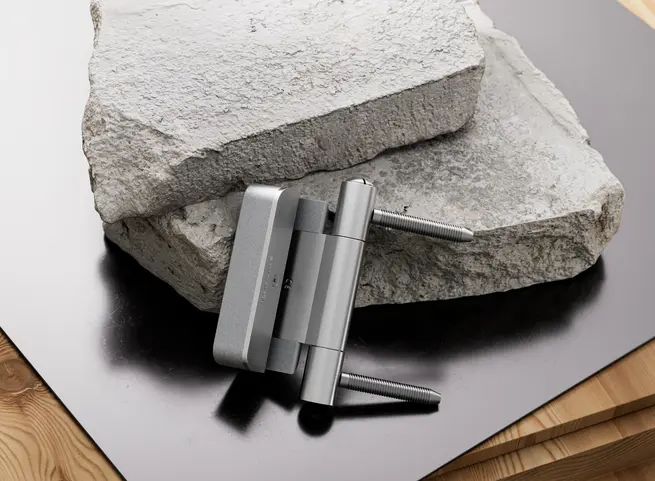

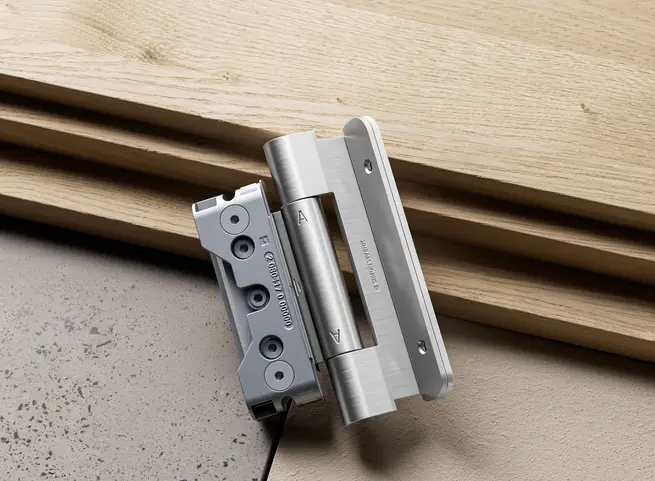

The hinge system for modern rebated, flush rebated and unrebated entrance doors
- convenient 3D adjusting mechanism
- for load capacities up to 160 kg
- CE-certified
- concealed receiver in door leaf and frame
- for doors with overlap seal
- can be used for system testing in accordance with DIN EN 1627 et seq.
- maintenance-free slide bearings
Schüco Welcome Forum

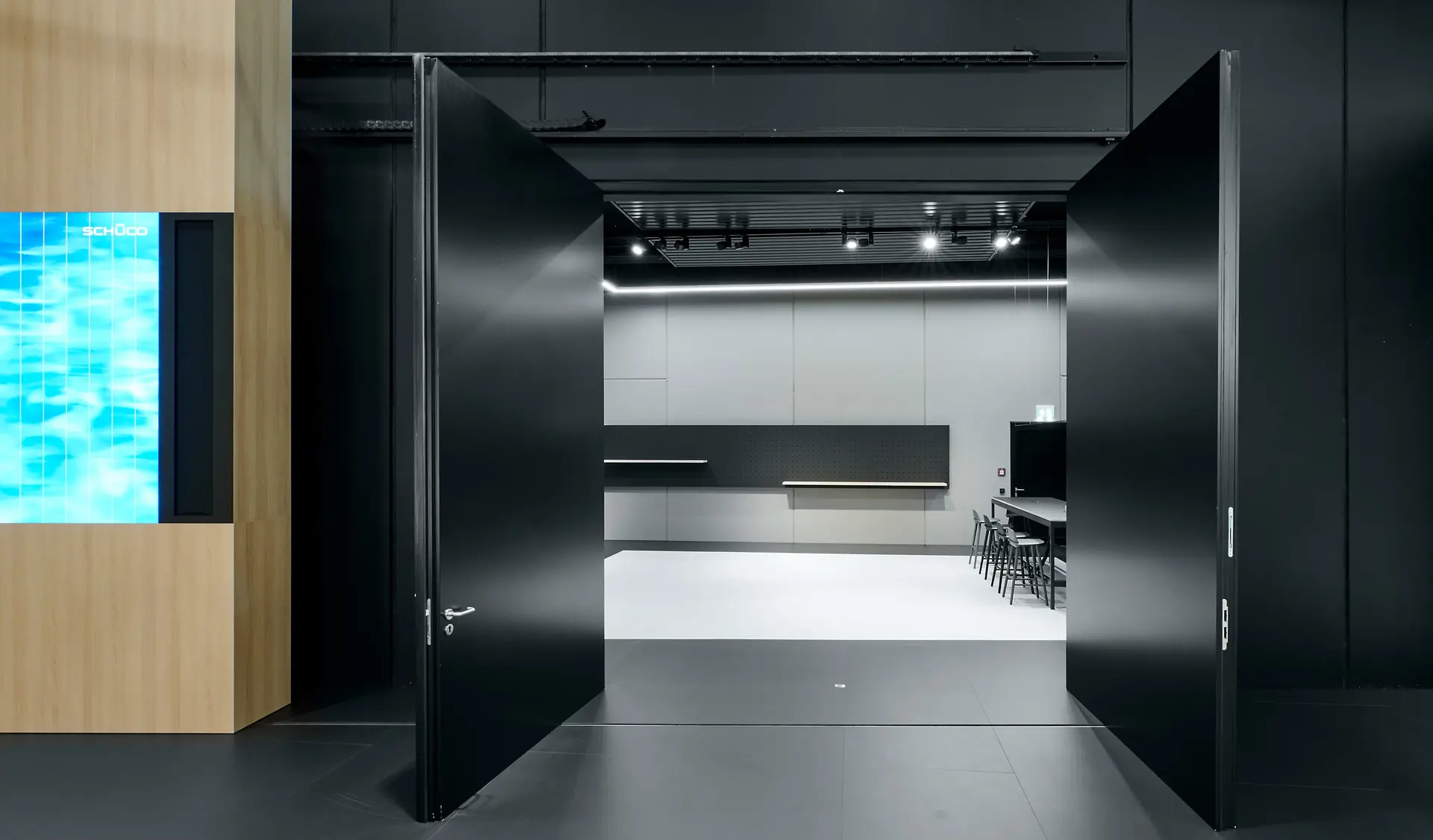

For a striking impression: 4 x 4 m doors
Building envelope specialist Schüco shows off its newest products and production methods at the new Welcome Forum in Bielefeld. The building’s architecture gives comprehensive insights and the doors which are up to 4 metres large are sure to impress. The TECTUS hinge system from SIMONSWERK – for greater load capacity and security. The VX hinge systems from the VARIANT brand also integrate seamlessly into the room concept.
